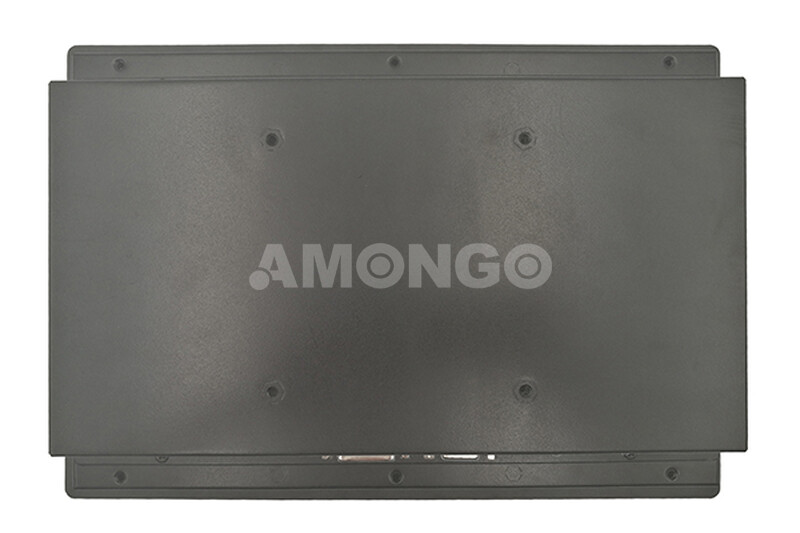

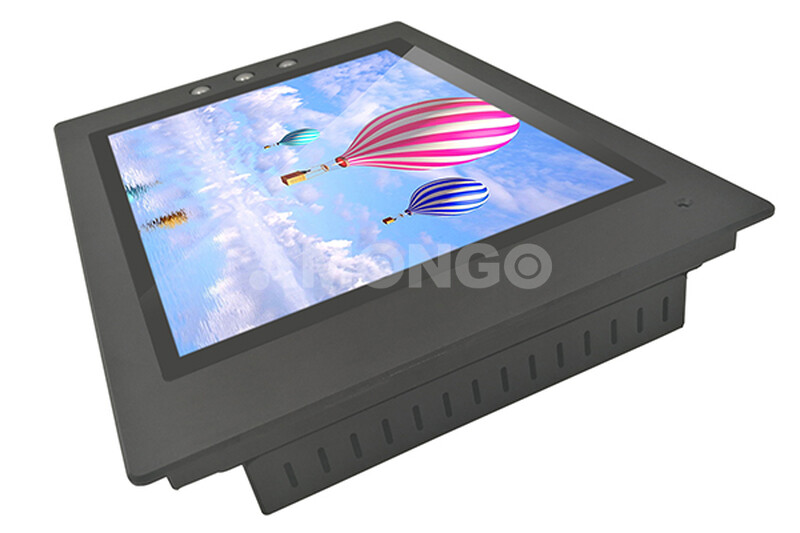

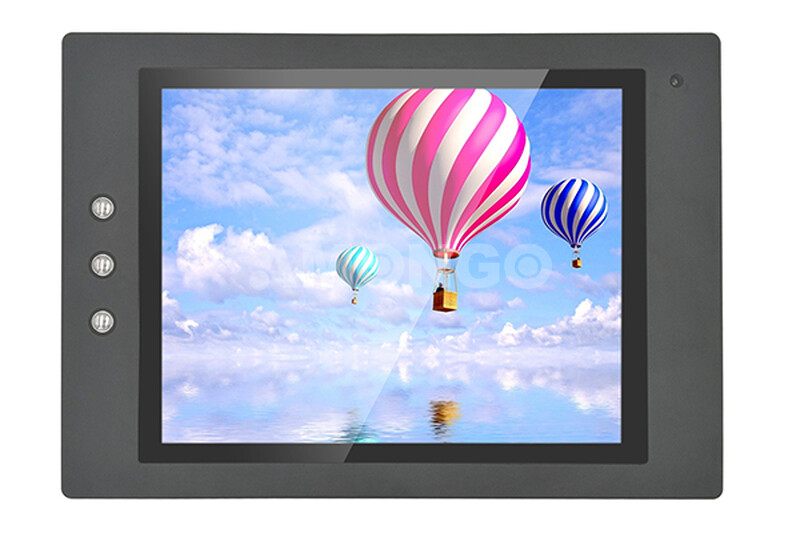

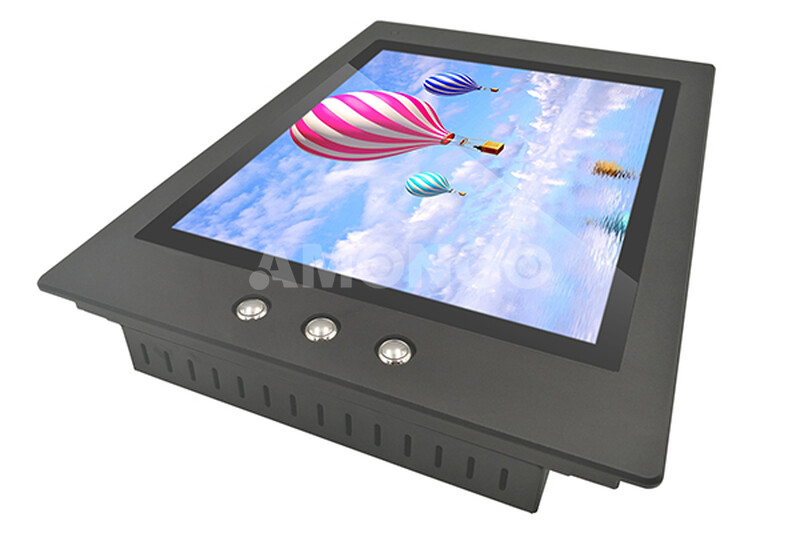

10.4 дюймовый гидрокристаллический дисплей

Model Name

AMG-10IPHJ01T1

Screen Size

10.4"

Active Display Area(mm)

211.2(H)x158.4(V)

Pixel Pitch(mm)

0.264(H)x0.264(V)

Display Mode

Normally white

Display Color

16.2M/262K

Display Resolution(pixel)

800x600

Contrast Ratio

500:1

Brightness

1000nits(Light Sensor)

Backlight

LED

Viewing Angles(CR=10)

160(H);130(V)

Response Time(Typ.Tr+Tf)

35ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Support

Optical Bonding

Support

Signal Connector

VGA/DVI-D

Power Consumption

DC 12V

Touch Controller

USB

Dimension(VxHxT)mm

295x205x40

Operating Temperature

-20～70℃

Storage Temperature

-20～70℃

Relative Humidity

5[%RH]～90[%RH]
