Model Name |
AMG-12OPMD01N1 |
|
Screen Size |
12.1" |
|
Active Display Area (mm) |
246.0 (H) x 184.5 (V) |
|
Pixel Pitch (mm) |
0.3075(H) x 0.3075(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
800x600 |
|
Contrast Ratio |
500:1 |
|
Display Color |
262k,144 colors |
|
Brightness (CD/㎡) |
400 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
140 (H); 110 (V) |
|
Response Time(Typ.Tr+Tf) |
35ms |
|

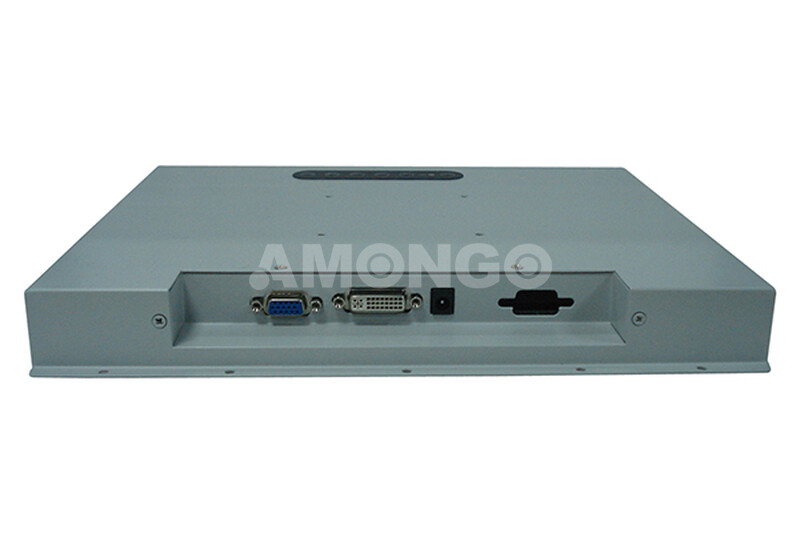

Signal Connector |
VGA/DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
300x248x34 |
|
Operating Temperature |
-10～65℃ |
|
Storage Temperature |
-30～70℃ |
|
Relative Humidity |
5(%RH)～90(%RH) |
